クイック詳細
コンディション：新品
原産地：安徽省、中国（本土）
Model Number:Laser-3015-500W
Voltage:380V/220V
Rated Power:220W
Dimension(L*W*H):3700*2280*1400
Weight:1500kg
認定：CE
Name:Factory Price CNC Fiber Laser Sheet Metal Cutting Machine For Sale
Model:Laser-3015-500W
青色
Cutting Range:1500*3000mm
Effective cutting length Y Axis:can be extended by your requirements
Laser generator:Raycus
Table:steel structure
Laser Software:CPYCUT
Laser Head:Switzerland Raytools
Laser THC:With
提供される売り上げ後のサービス：利用できる海外サービスセンター
Warranty:one yearne.
製品説明
CNC FIBER LASER CUTTING MACHINE FOR METAL PLATE1.Good Working stability, high frequency interfere effectively plasma,lightweight portable2.Economic benefits,the structure and design is contracted. it adopts humanistic positive man-machineconversation and operate easily3.Cutting has high quality, high effect level, high precision4.Programmable cutting arbitrary shape parts of line and arc5.Dynamic and static graphic display, easy to learn. Can convert CAD file to program file in computer, through USB flash drive transmitsto machine to realize cutting all kinds graphs. And also can program and operate directly on the machine.6.Pre-sale will train and after-sale will track service
Laser-3015-500W Fiber CNC Laser Cutting Machine | ||||
| Main technical parameters of equipment | ||||
| モデル | Laser-3015-500W | |||
| X,Y Axial Positioning Accuracy | ±0.05mm/mm | |||
| X,Y Axial Repeat Positioning Accuracy | ±0.03mm/mm | |||
| X,Y Axial Effective Cutting Range | 3000×1500mm | |||
| Maximum Traverse speed | 80m /分 | |||
| Accelerated speed | 0.8g | |||
| ドライブ | alternating current servo | |||
| Rate Power Supply/Frequency | 380v/50Hz | |||
| 構造 | steel structure | |||
| Laser Generator (Raycus RFL-C500) Details: | ||||
| Optical parameter | RFL-C500 | |||
| レーザー波長 | 1070±4 nm | |||
| Output ratings | 500W | |||
| ビーム品質 | 2 mm×mrad | |||
| Maximum modulation frequency | 50Khz | |||
| 光ファイバ径 | 25μm | |||
| 出力電力安定性 | ±1% | |||
| 力 | 200~240VAC,50/60Hz | |||
| Power dissipation | 1.6Kw | |||
| Measure(W*D*H) | 448×580×132 | |||
| 重量 | Oxygen Gas Max 0.7Mpa | |||

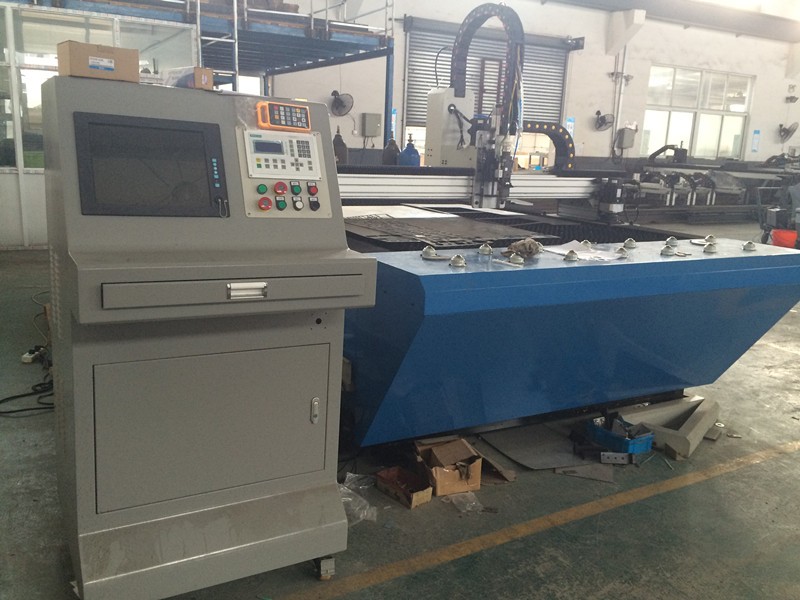

Exhibition Operating Photos:
WHY CHOOSE US?
1.We are manufacturer and export CNC cutting machine over 7 years,very familiar with wholeshipping process,so can lose a lot risks.
2.Experienced technology&quality team,our engineers have over 15 years working experiencein the fields to ensure stable performance and excellent design.Also we can give you best solu-tions if appearing problems after-sale.
3.We only choose high quality and famous materials parts for our machines.
4.Quick response:our customer service is professional and efficient to ensure your questions arereplied within 12 hours.
5.Warranty :1 year warranty from B/L issue date,during the period of time if it appears wrongs innormal operation,will be repaired or replaced free of charge.
Some Problems you may ask:
1. What material the cutting machine suitable for ?Our machine can cut metal plate or circle pipe,like Mild steel,Steel Sheet and Alumium.There are two cutting ways,Plasma andGas.
2.How to operate the machine and software?Easy?It is easy to operate,we will supply you Operation Manul and Software Manual,it will teach you step by step.We also can supplyyou eaching video.
3.How do you do when it appears problem during working?You can send me mail or call to let us know your problem,and send also some pictures.Our engineers will give you a series ofsolutions.If need spare parts,we will send you for free if within 12 months or one year warranty time.If the problem is big,we alsocan send our engineers to your local if nessary.
